Interior Panel Monkey Business

By David Belau

dartslantsix

I enjoy a good sound system like anyone else, but as someone who has restored a few cars, it makes me cringe to see original interior panels cut for the sake of sound. There’s nothing more infuriating than finally finding a perfect door panel only to discover that it has a 6×9 hole cut into it.

The previous owner of my 1992 Dodge Dakota Club Cab decided to replace the stock 5×7 rear speakers with 6x9s. The problem is that 6x9s do not fit. “No biggie,” said the monkeys at the car audio shop. “Just flush mount them and cut the interior panel with a sawzall! Be sure to reinforce everything with a couple of sheetrock screws!”

Continue reading after the jump!

It worked great until a 321 lb gorilla rode in the rear seat. His elbow was so comfortable it smashed into the speaker cone that he didn’t even notice the damage he caused. After this adventure, I bought the truck. I replaced the buzzing, deformed speakers with the factory size. This exposed the nasty cuts that the audio shop/sawzall monkeys did to the panel. A factory cover would not cover the mess, so it was up to me to make something.

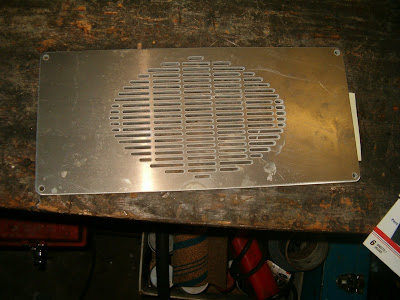

I took some time with a CAD program and drew up a panel that would cover the hole. I had a guy at work cut it on a water jet out of .125 aluminum.

Now before I get too far, I know some of you will say, “This is great and all, but how does this help me?” I’m glad you asked. Send me a message with your email and I’ll send you the DXF file. (This is the file the CNC operator uses to program the machine.) That way you can take your pen drive down to your local fabricator and have a couple of these made. The panel measures: 13.00 x 6.00 and uses #10 screws to attach. The slats are sized for a 5×7 speaker. They could be cut out of a variety of materials; I just used the aluminum because it was laying around.

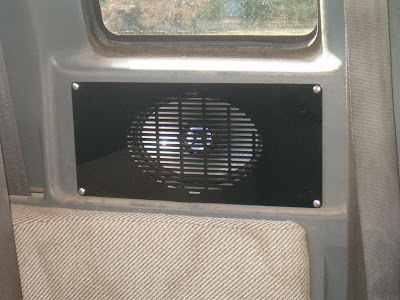

My original plan was to sand and polish the panel. After realizing that it would be a lot of work, I just painted them. Here they are installed:

I used #10 x .50 stainless sheet metal screws. Looks a bit better I think. Now I just have to remove the gorilla sweat stains from the seat.
